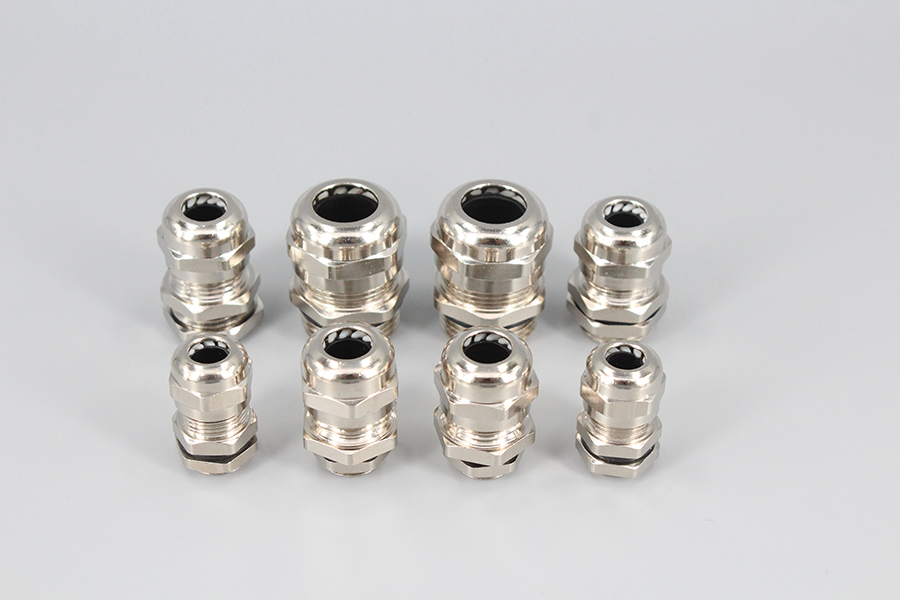

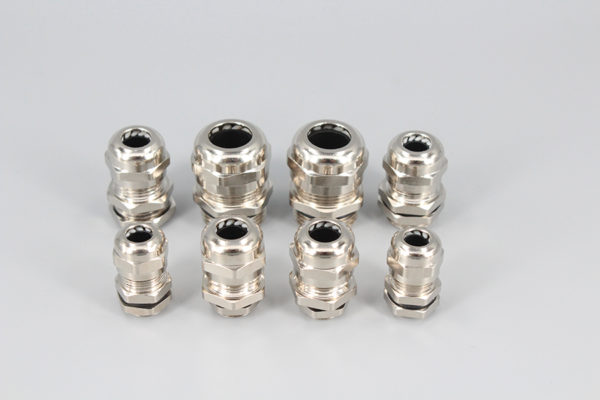

NPT G thread metal brass or stainless steel material cable gland
Material:Brass or Stainless steel material,the sealing is NBR material,the clamp claw is nylon material.
IP degree:IP68
Thread: Metric
Working temperature:-40℃ to 100℃
Feature:Resistant to salt water,weak acid,alcohol,oil,grease,etc.High tension.
Specification
(if you can’t find your interested size,pls contact us,these only part of cable ties size.)
| Type | Cable diameter(mm) | Thread diameter AG(mm) | Teeth number within 25mm | Thread length GL (mm) | Jointment length H(mm) | Wrench diameter(mm) |
| G1/4 | 3-6.5 | 13.1 | 19 | 10 | 19 | 14 |
| G3/8 | 4-8 | 16.6 | 19 | 10 | 19 | 14 |
| G1/2 | 6-12 | 20.9 | 14 | 10 | 20 | 17 |
| G3/4 | 13-18 | 26.4 | 14 | 10 | 20 | 17 |
| G1 | 18-25 | 33.2 | 11 | 10 | 21 | 20 |
| G11/4 | 22-33 | 41.9 | 11 | 10 | 21 | 20 |
| G11/2 | 32-38 | 47.8 | 11 | 15 | 22 | 22 |
| G2 | 37-44 | 59.6 | 11 | 15 | 22 | 22 |
| G21/2 | 42-52 | 75.1 | 11 | 15 | 23 | 24 |
| G3 | 65-70 | 87.8 | 11 | 15 | 23 | 24 |
| NPT1/4 | 3-6.5 | 13.6 | 18 | 15 | 25 | 24 |
| NPT3/8 | 4-8 | 17 | 18 | 15 | 25 | 24 |
| NPT1/2 | 6-12 | 21.2 | 14 | 15 | 27 | 30 |
| NPT3/4 | 13-18 | 26.5 | 14 | 15 | 27 | 30 |
| NPT1 | 18-25 | 33.2 | 11.5 | 15 | 29 | 35 |
| NPT11/4 | 22-33 | 41.9 | 11.5 | 15 | 29 | 35 |
| NPT11/2 | 32-38 | 48 | 11.5 | 15 | 31 | 40 |
| NPT2 | 37-44 | 60 | 11.5 | 15 | 31 | 40 |
| NPT21/2 | 42-52 | 72.6 | 8 | 15 | 37 | 50 |
| NPT3 | 65-70 | 88.6 | 8 | 15 | 37 | 50 |
Details of product
