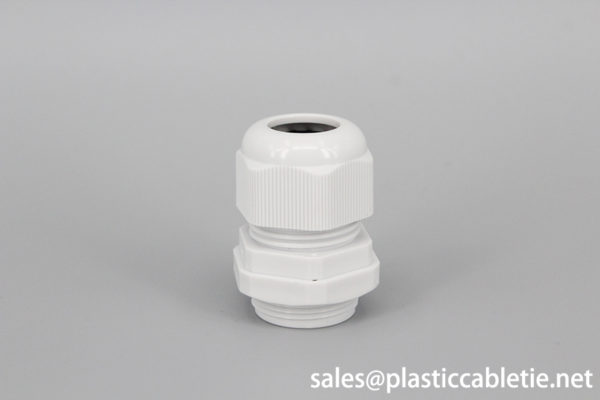

DEMOELE Hot sale China manufactory application IP68 waterproof nylon NPT PG Metric G thread cable glands size with a dusty proof cap

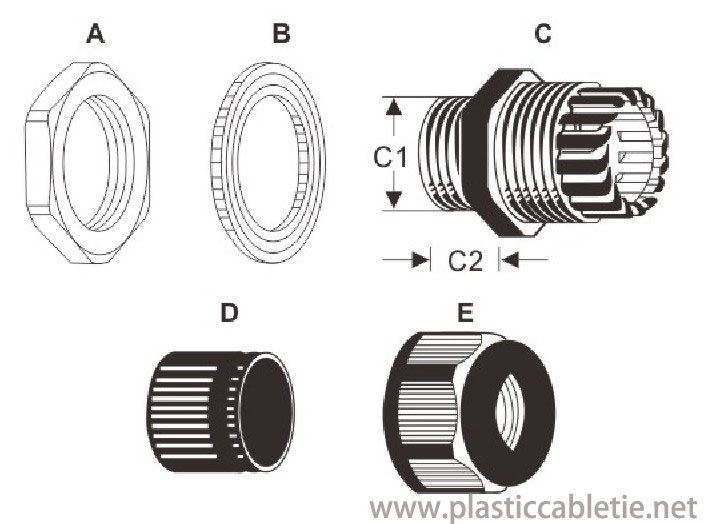

Material:Nylon PA66(Flammability UL94V-2)for A,C,E parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc)
IP degree:IP68
Working temperature:-40℃ to 100℃
Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.
Colours:Black,Grey,other color available upon request.
Specification
Special specification can be customized.
| Type | Cable diameter (mm) | Thread diameter C1(mm) | Thread length C2 (mm) | Wrench diameter(mm) | |
| PG7 | 3-6.5 | 12.5 | 8 | 16 | Standard type |
| PG9 | 4-8 | 15.2 | 8 | 19 | |
| PG11 | 5-10 | 18.6 | 8 | 22 | |
| PG13.5 | 6-11 | 20.4 | 10 | 24 | |
| PG16 | 10-13 | 22.5 | 10 | 27 | |
| PG19 | 12-15 | 24 | 10 | 27 | |
| PG21 | 13-18 | 28.3 | 10 | 33 | |
| PG25 | 16-21 | 30 | 11 | 35 | |
| PG29 | 18-25 | 37 | 12 | 42 | |
| PG36 | 22-32 | 47 | 14 | 52 | |
| PG42 | 32-38 | 54 | 14 | 60 | |
| PG48 | 37-44 | 59.3 | 15 | 64 | |
| PG63 | 42-50 | 71 | 28 | 77 | |
| PG7 | 2-5 | 12.5 | 8 | 16 | Rubber ring thicken type |
| PG9 | 2-6 | 15.2 | 8 | 19 | |
| PG11 | 3-7 | 18.6 | 8 | 22 | |
| PG13.5 | 5-9 | 20.4 | 10 | 24 | |
| PG16 | 7-12 | 22.5 | 10 | 27 | |
| PG19 | 10-13 | 24 | 10 | 27 | |
| PG21 | 9-16 | 28.3 | 10 | 33 | |
| PG25 | 13-18 | 30 | 11 | 35 | |
| PG29 | 13-20 | 37 | 12 | 42 | |
| PG36 | 20-26 | 47 | 14 | 52 | |
| PG42 | 25-31 | 54 | 14 | 60 | |
| PG48 | 29-35 | 59.3 | 15 | 64 | |
| PG63 | 32-40 | 71 | 28 | 77 |
