New Material black and grey white IP68 waterproof Nylon Right Angle Elbow Cable Glands with CE certificate
90° Elbow nylon cable gland
Material:Nylon 66+ NBR
IP degree:IP68
Working temperature:-40℃ to 100℃
Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.
Colours:Black,Grey,other color available upon request.
Specification
| Type | Cable diameter (mm) | Thread diameter C1(mm) | Thread length C2 (mm) | Height H(mm) | Wrench diameter(mm) | |
| PG9 | 4-8 | 15.2 | 8 | 37 | 19 | Standard type |
| PG11 | 5-10 | 18.6 | 8 | 39 | 22 | |
| PG13.5 | 6-11 | 20.4 | 10 | 43 | 24 | |
| PG16 | 10-13 | 22.5 | 10 | 48 | 27 | |
| PG21 | 13-18 | 28.3 | 10 | 56 | 33 | |
| PG29 | 18-25 | 37 | 12 | 68 | 42 | |
| PG9 | 2-6 | 15.2 | 8 | 37 | 19 | Rubber ring thicken type |
| PG11 | 3-7 | 18.6 | 8 | 39 | 22 | |
| PG13.5 | 5-9 | 20.4 | 10 | 43 | 24 | |
| PG16 | 7-12 | 22.5 | 10 | 48 | 27 | |
| PG21 | 9-16 | 28.3 | 10 | 56 | 33 | |
| PG29 | 13-20 | 37 | 12 | 68 | 42 |

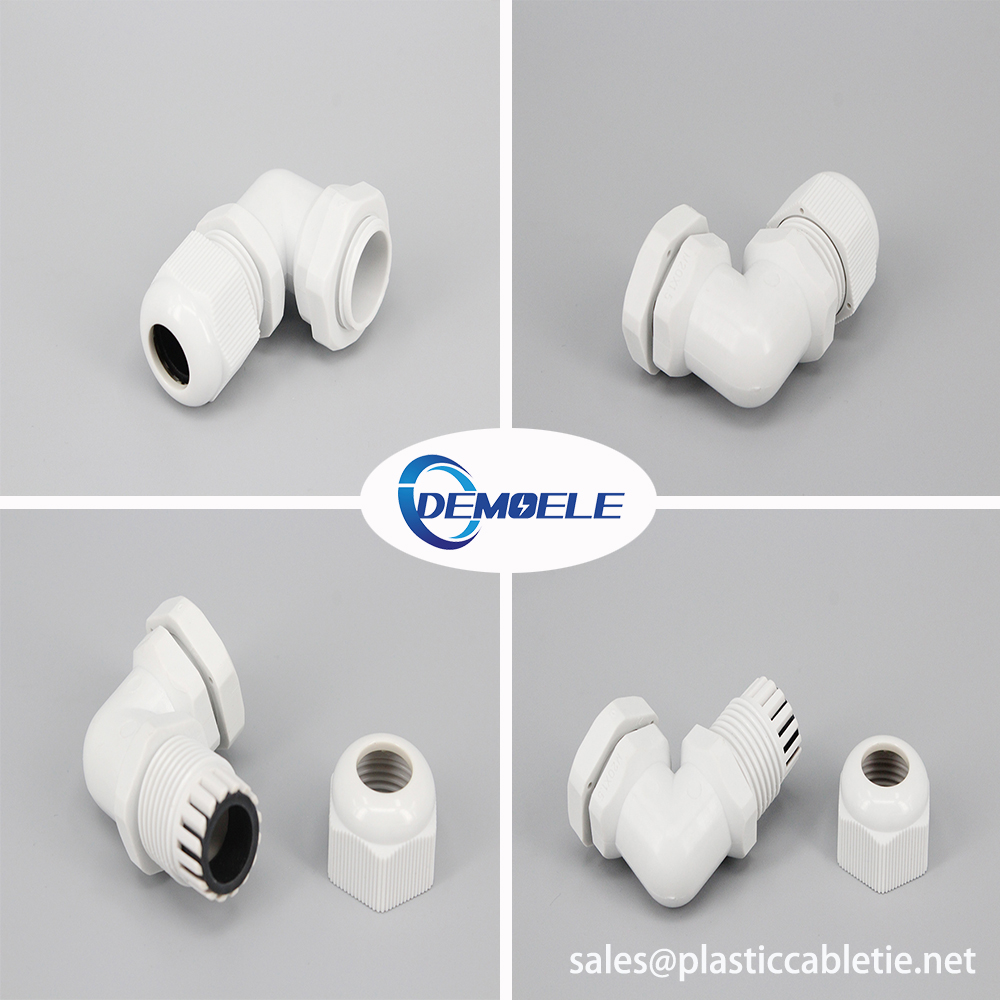

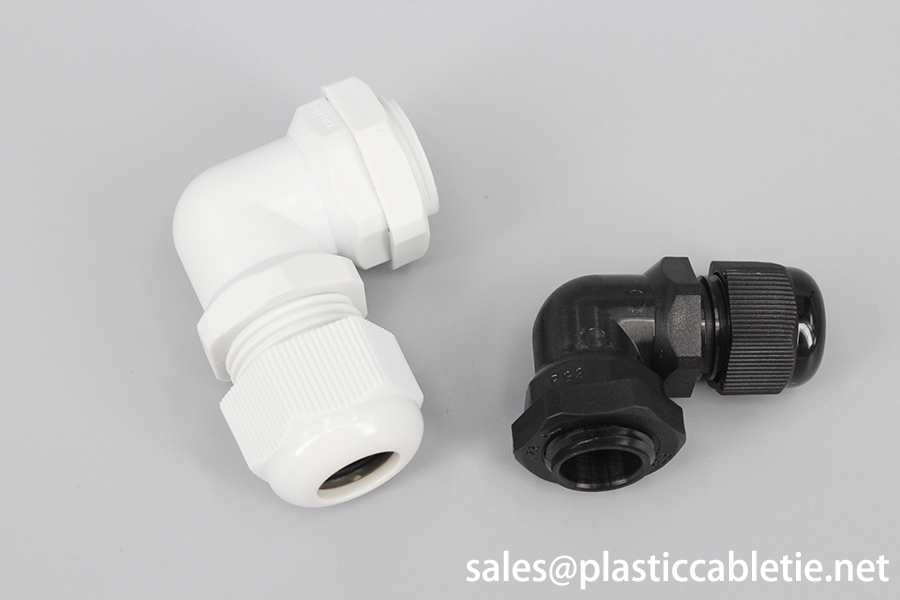

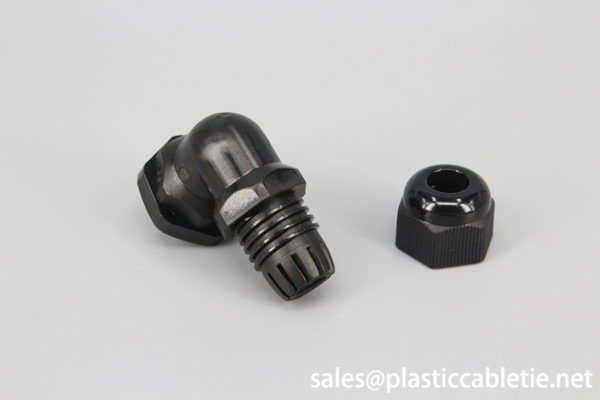

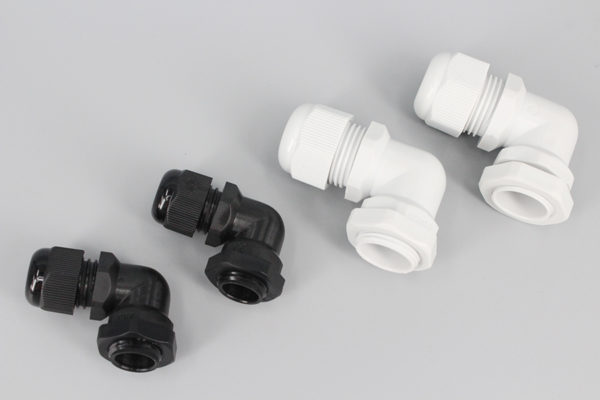

Details of product
