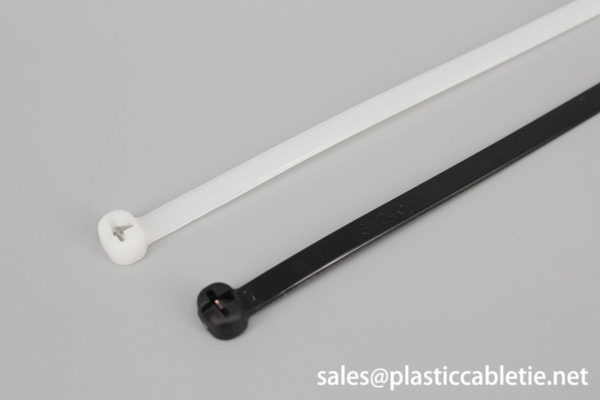

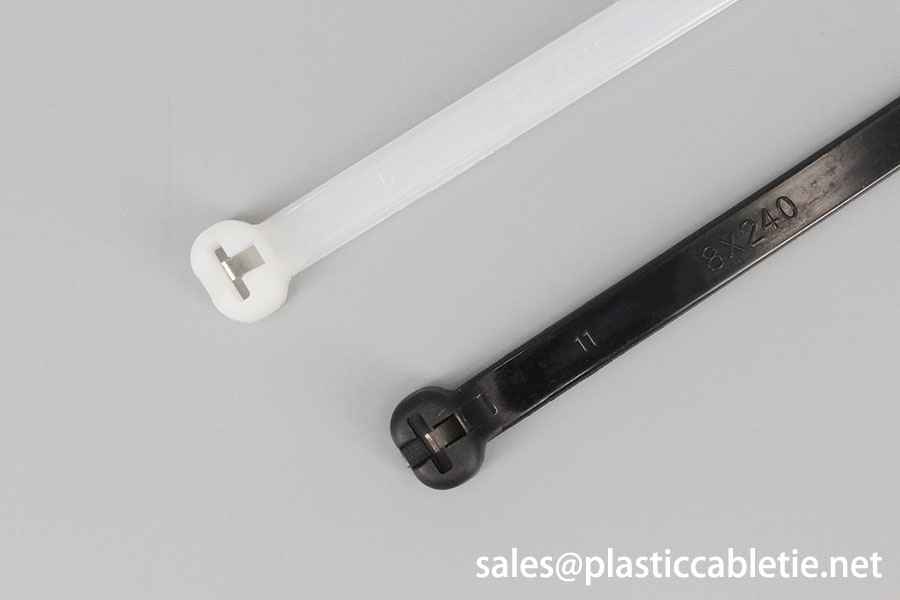

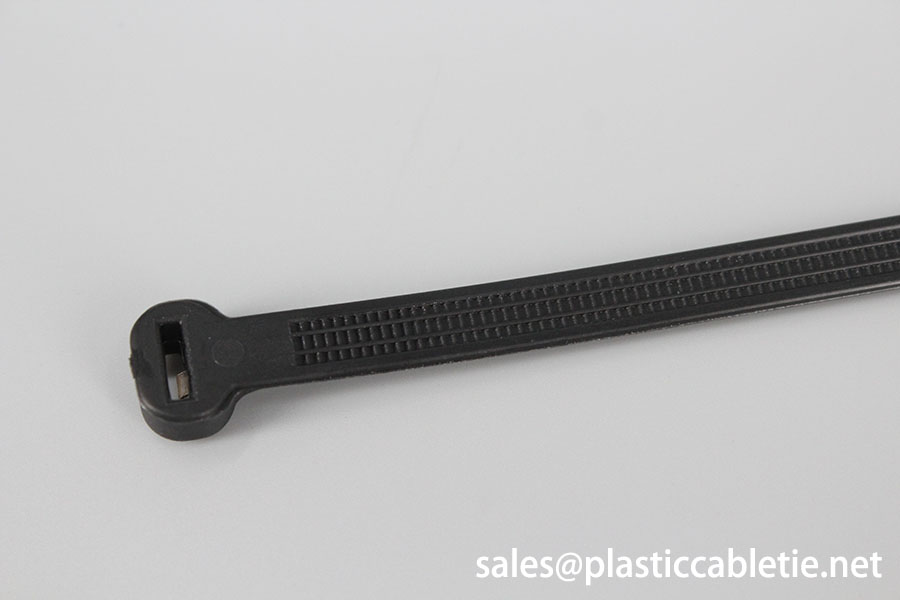

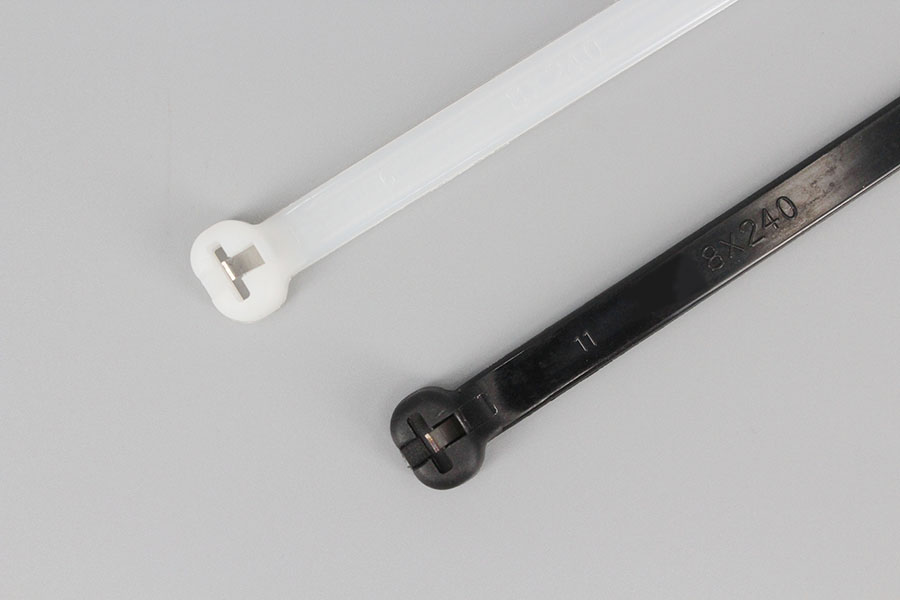

Black and Natural Nylon Stainless Steel Barb Inlay Cable Tie
Nylon cable tie with stainless steel inlay lock (Marine cable tie) Sample free
Material: Nylon66
Material locking barb:Stainless steel 201,304 or 316
Working temperature: -25℃ to 85℃ (other working temp is available as requested).
Color: Natural and black,other colors are available as requested.
Feature: the Stainless steel barb provides consistent performance and the lock is not easy to break.
Specification
(if you can’t find your interested size,pls contact us,these only part of cable ties size.)
| Item No. | Length(L) | Wide (W) | Bundle diameter (E)(mm) | Tensile strength | ||
| inch | mm | mm | LBS | KGS | ||
| DM-3*100NZ | 4” | 100 | 2.5 | 25 | 18 | 8 |
| DM-4*150NZ | 6” | 150 | 3.6 | 35 | 40 | 18 |
| DM-4*200NZ | 8” | 200 | 3.6 | 50 | 40 | 18 |
| DM-5*250NZ | 10” | 250 | 4.8 | 65 | 50 | 22 |
| DM-5*300NZ | 12” | 300 | 4.8 | 80 | 50 | 22 |
| DM-8*145NZ | 5.7” | 145 | 7.8 | 35 | 112 | 50 |
| DM-8*175NZ | 6.9” | 175 | 7.8 | 45 | 112 | 50 |
| DM-8*200NZ | 8” | 200 | 7.8 | 50 | 112 | 50 |
| DM-8*240NZ | 9.45” | 240 | 7.8 | 60 | 112 | 50 |
| DM-8*300NZ | 12” | 300 | 7.8 | 80 | 112 | 50 |
| DM-8*400NZ | 16” | 400 | 7.8 | 110 | 112 | 50 |
| DM-10*300NZ | 12” | 300 | 9.5 | 80 | 124 | 55 |
| DM-10*350NZ | 14” | 350 | 9.5 | 95 | 124 | 55 |
| DM-10*400NZ | 16” | 400 | 9.5 | 110 | 124 | 55 |
| DM-10*450NZ | 18” | 450 | 9.5 | 130 | 124 | 55 |
| DM-10*550NZ | 22” | 550 | 9.5 | 160 | 124 | 55 |
| DM-10*600NZ | 24” | 600 | 9.5 | 175 | 124 | 55 |
